Internet Egress Needs a Static IP? Create a NAT Gateway

CloudTrips resources need to connect to services on the internet. Some of those services accept requests only from approved public IP addresses, so CloudTrips needs one outbound IP that stays the same. Giving every VM its own public IP would create several addresses to secure and manage.

Create an Azure NAT Gateway for snet-app. NAT stands for Network Address Translation: for an outbound connection, the gateway translates a workload’s private source address into one static public source address. Every resource in the associated subnet can therefore share the same predictable egress IP without receiving its own public IP.

This trip uses the VNet and application subnet created in App Needs a Private Network? Create a VNet.

The intended path is:

Resource in snet-app -> NAT Gateway -> static public IP -> Internet

NAT Gateway handles outbound connections and their response traffic. It does not accept unsolicited inbound internet connections, inspect application traffic, or replace NSG rules.

Plan the Outbound Path

Use:

Resource group: rg-cloudtrips-network-test-weu
NAT gateway: natgw-cloudtrips-app-test-weu
Public IP: pip-cloudtrips-nat-test-weu
Virtual network: vnet-cloudtrips-test-weu
Subnet: snet-app

The NAT Gateway and public IP must be in West Europe, the same region as the subnet. Create a dedicated public IP; do not reuse pip-cloudtrips-vm-test-weu, because that address was created for direct VM connectivity.

Create the NAT Gateway

In the Azure portal, search for NAT gateways, open the service, and select Create.

On Basics, configure:

Subscription: CloudTrips TEST
Resource group: rg-cloudtrips-network-test-weu
NAT gateway name: natgw-cloudtrips-app-test-weu
Region: West Europe
SKU: Standard
Availability zone: No Zone
TCP idle timeout: 4 minutes

The idle timeout controls how long an inactive TCP connection remains mapped. Keep the default for this exercise.

Select Next: Outbound IP. Under Public IP addresses, select Create a new public IP address, enter pip-cloudtrips-nat-test-weu, and select OK. Azure creates a static Standard IPv4 address for the gateway.

Select Next: Networking and configure:

Virtual network: vnet-cloudtrips-test-weu
Subnet: snet-app

Only selected subnets use the NAT Gateway. Associating it with snet-app does not change outbound traffic from snet-data.

On Tags, add:

Application: CloudTrips
Environment: TEST
Purpose: OutboundConnectivity

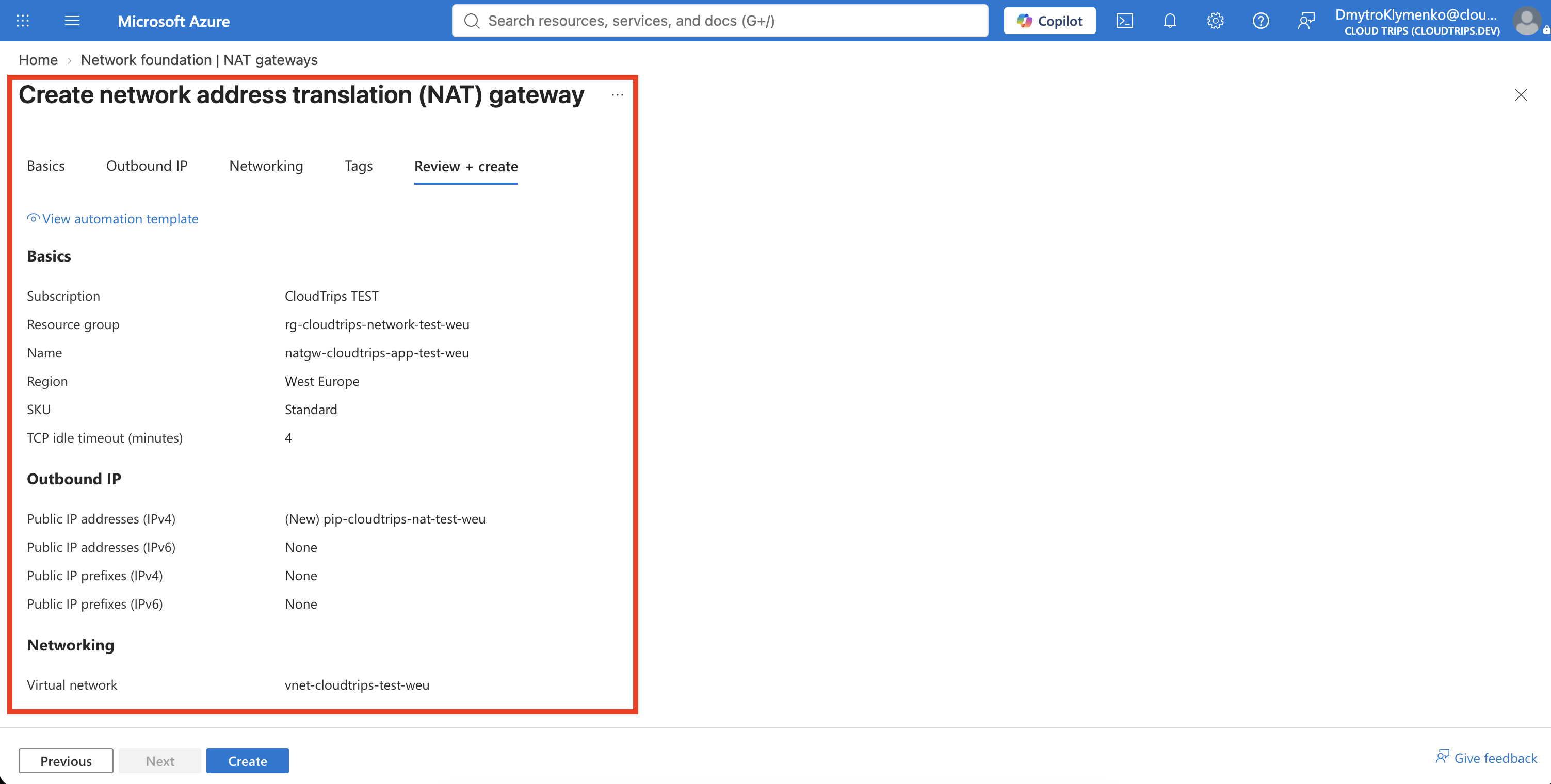

Select Review + create, and then select Create.

Verify the Subnet Association

Open natgw-cloudtrips-app-test-weu. On Overview, confirm that its provisioning state is Succeeded. Under Settings > Outbound IP, confirm that pip-cloudtrips-nat-test-weu is attached.

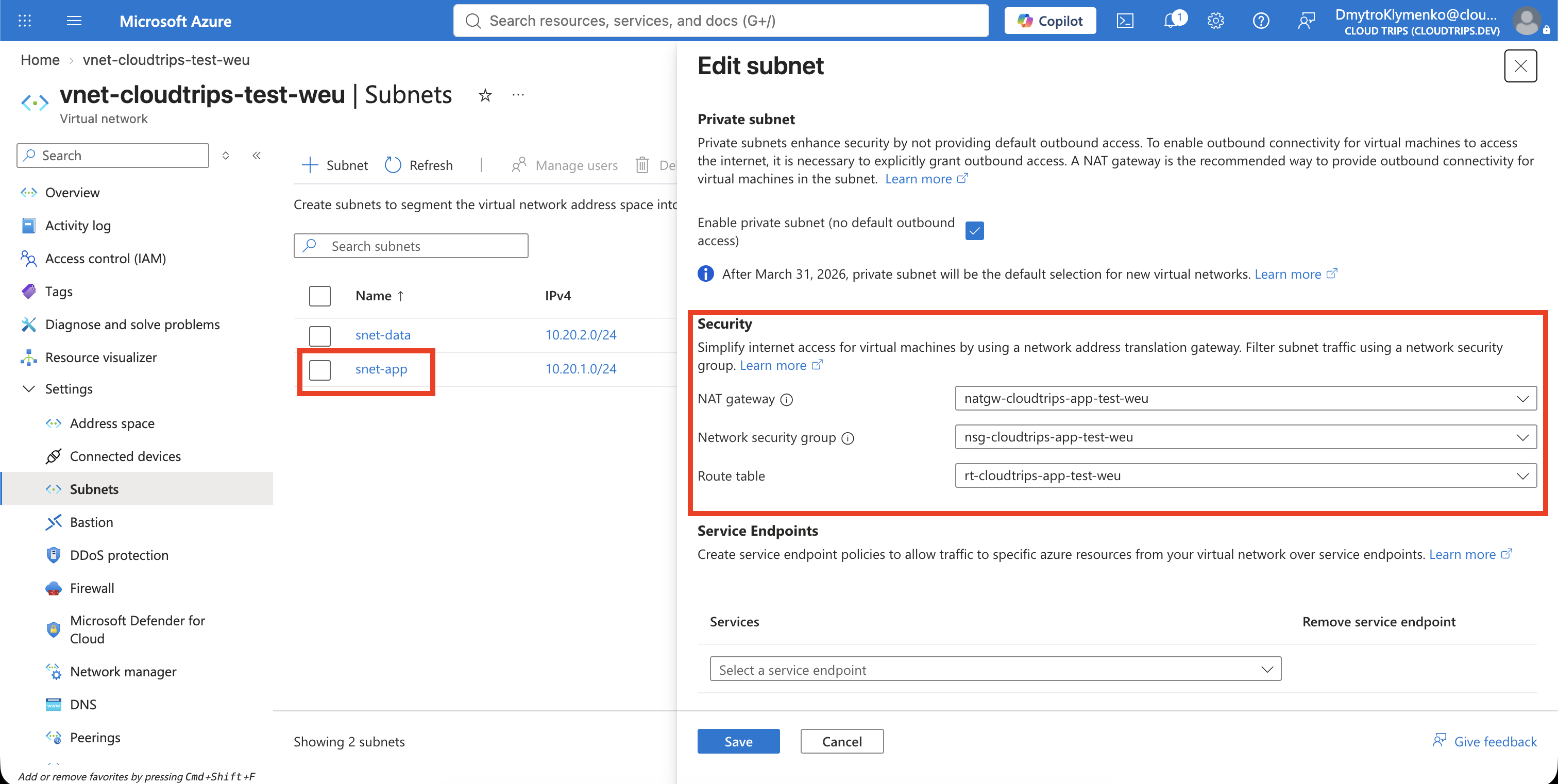

Then open:

Virtual networks > vnet-cloudtrips-test-weu > Subnets > snet-app

Confirm:

NAT gateway: natgw-cloudtrips-app-test-weu

The subnet now has an explicit outbound method. When a resource in snet-app starts an internet connection, the destination sees the static address of pip-cloudtrips-nat-test-weu, not the resource’s private IP. Verifying the actual observed address requires a running workload in the subnet; this trip verifies the network configuration without creating a billable VM.

Remove the Billable Resources

NAT Gateway and its public IP can incur charges while provisioned. If you are finished with the exercise, open snet-app, set NAT gateway to None, and save. Delete natgw-cloudtrips-app-test-weu, then delete pip-cloudtrips-nat-test-weu.

Do not delete vnet-cloudtrips-test-weu or snet-app; other Networking trips use them.
