Office Needs a Private Azure Connection? Create a VPN Gateway

Published on:
#networking

CloudTrips needs a secure path between its office network and private Azure resources. Sending that traffic directly over the internet would expose the connection path and would not integrate the office network with Azure routing.

An Azure VPN Gateway is the Azure-side endpoint for encrypted VPN tunnels. It runs in the hub VNet so that multiple spoke VNets can share one gateway. The gateway has a public IP address for establishing the tunnel, but this does not give the resources in the spokes public IP addresses. The tunnel traffic is encrypted.

This trip creates the gateway and shares it with the application and services spokes. The actual site-to-site tunnel requires information about the office VPN device and is configured in the next trip.

This trip builds on: Spoke Networks Need a Central Hub? Configure a Hub-Spoke Network.

Plan the Azure VPN Endpoint

Use:

Hub VNet: vnet-cloudtrips-hub-test-weu
Gateway subnet: GatewaySubnet
Gateway subnet range: 10.60.255.0/27
VPN gateway: vng-cloudtrips-hub-test-weu
Gateway type: VPN
VPN type: Route-based
SKU: VpnGw1AZ
Public IP: pip-cloudtrips-vng-test-weu
Active-active mode: Disabled
BGP: Disabled

VpnGw1AZ is used as the smallest AZ-capable gateway SKU for this TEST environment. A production choice must be based on availability, tunnel count, throughput, and the capabilities of the office VPN device.

VPN Gateway is a billed resource while it remains provisioned. Creating it commonly takes 45 minutes or more. Do not create it merely to inspect the portal form.

Create GatewaySubnet

A VPN gateway must be deployed into a subnet named exactly GatewaySubnet. This is not just a naming convention: Azure uses the reserved name to find the subnet where it can deploy and manage the gateway instances. A normally named subnet such as snet-gateway is not recognized, and gateway creation fails if GatewaySubnet does not exist. Do not place VMs or other resources in this dedicated subnet.

Open vnet-cloudtrips-hub-test-weu and select Settings > Subnets > + Subnet.

Configure:

Subnet purpose: Virtual Network Gateway
Name: GatewaySubnet
Starting address: 10.60.255.0
Size: /27

The purpose selection should set the required name automatically. A /27 provides 32 addresses and leaves room for gateway instances and future gateway configuration changes.

Do not associate an NSG, route table, or NAT gateway with GatewaySubnet. Select Add.

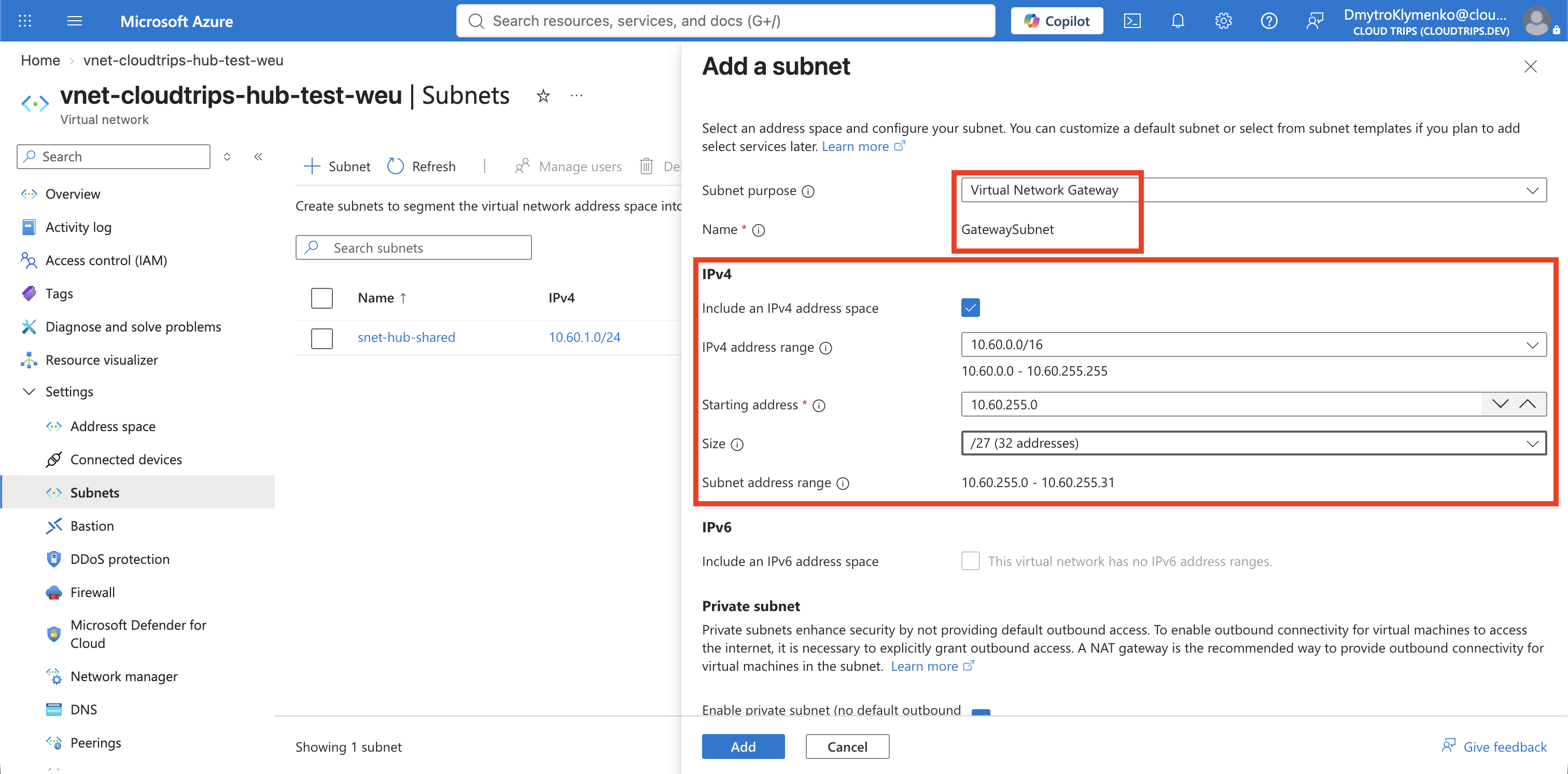

CloudTrips hub VNet Subnets page showing GatewaySubnet with the 10.60.255.0/27 range

Create the Virtual Network Gateway

Search the Azure portal for Virtual network gateways, open the service, and select Create.

On Basics, configure:

Subscription: CloudTrips TEST
Resource group: rg-cloudtrips-network-test-weu
Name: vng-cloudtrips-hub-test-weu
Region: West Europe
Gateway type: VPN
SKU: VpnGw1AZ
Virtual network: vnet-cloudtrips-hub-test-weu

The portal should detect GatewaySubnet automatically. If the hub VNet is not available, confirm that the gateway region is West Europe and that the required subnet exists.

Configure the public IP section:

Public IP address: Create new
Public IP address name: pip-cloudtrips-vng-test-weu
Enable active-active mode: Disabled
Configure BGP: Disabled
Enable Key Vault access: Disabled

The current portal might not display an Availability zone field. For a new gateway that uses the AZ-capable VpnGw1AZ SKU, Azure handles the zone-redundant deployment automatically, so no zone value must be entered.

The Standard, static public IP identifies the Azure end of a future VPN tunnel. It does not expose the private addresses in the hub or spokes.

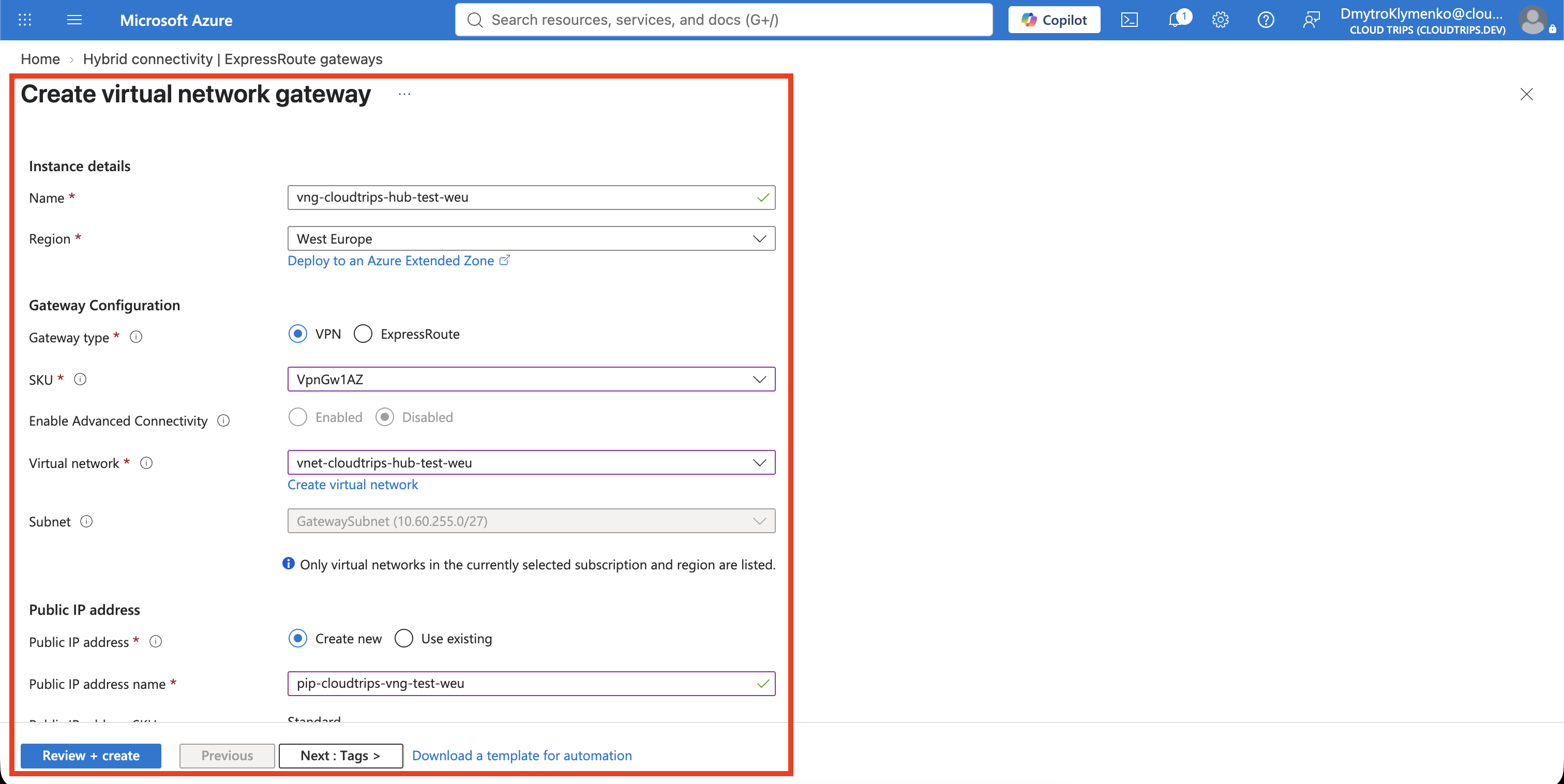

Create virtual network gateway page showing the CloudTrips VPN gateway, hub VNet, SKU, and public IP settings

Select Review + create, and then select Create. Leave the deployment running until Azure reports that it has completed.

Verify the Gateway

Open vng-cloudtrips-hub-test-weu and confirm:

Provisioning state: Succeeded
Gateway type: VPN
VPN type: Route-based
SKU: VpnGw1AZ
Virtual network: vnet-cloudtrips-hub-test-weu

Record the public IP address shown on the gateway overview. The office VPN device will use this address as its Azure tunnel endpoint in the next trip.

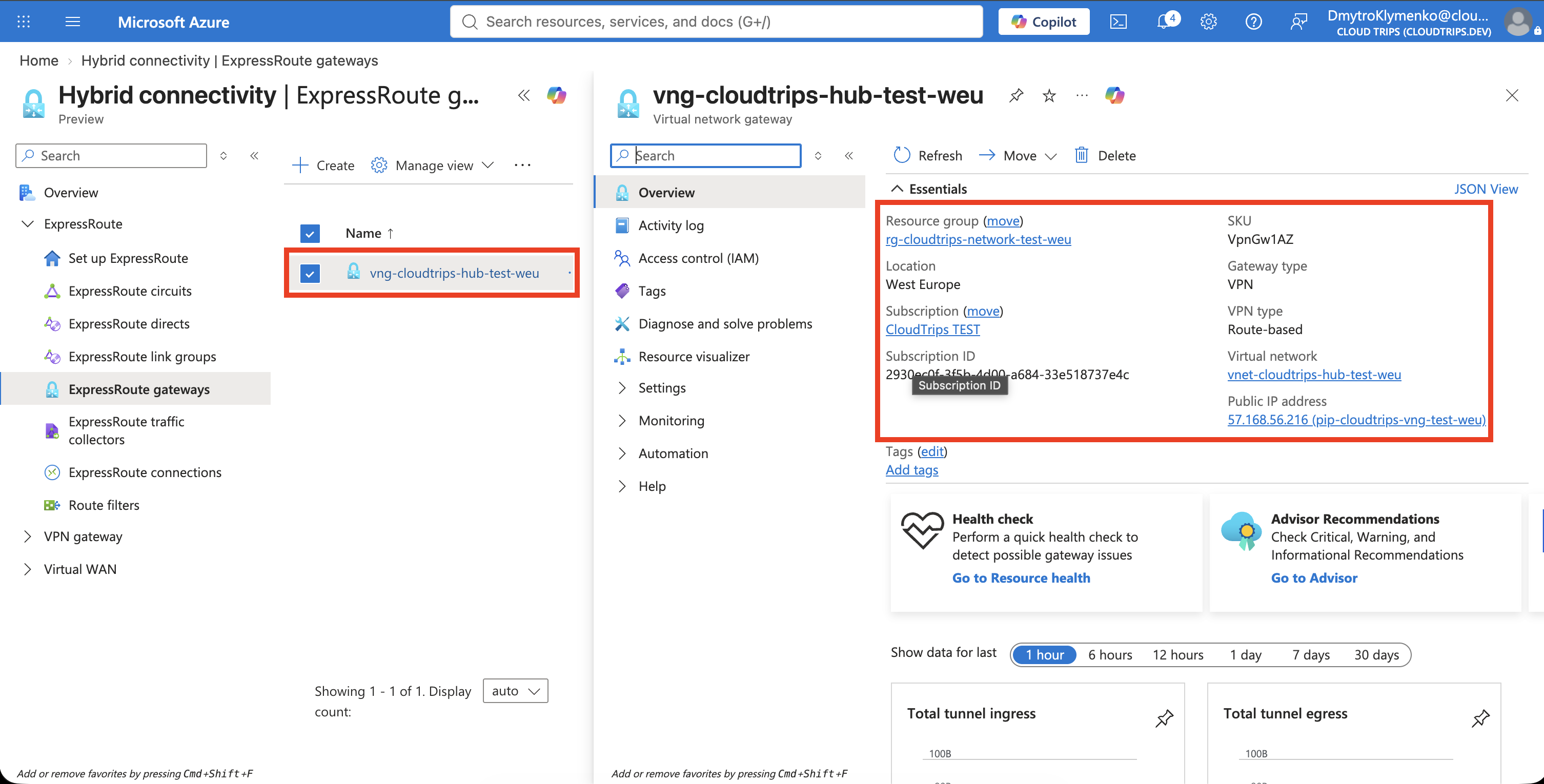

CloudTrips VPN gateway Overview page showing successful provisioning and its public IP address

You can also verify the gateway in Cloud Shell:

az network vnet-gateway show \
  --resource-group rg-cloudtrips-network-test-weu \
  --name vng-cloudtrips-hub-test-weu \
  --query "{State:provisioningState,VpnType:vpnType,Sku:sku.name}" \
  --output table

az network public-ip show \
  --resource-group rg-cloudtrips-network-test-weu \
  --name pip-cloudtrips-vng-test-weu \
  --query "{Address:ipAddress,Allocation:publicIPAllocationMethod,Sku:sku.name}" \
  --output table

Share the Hub Gateway with the Spokes

Gateway transit allows the spokes to use the gateway in the hub instead of deploying a separate gateway in every VNet.

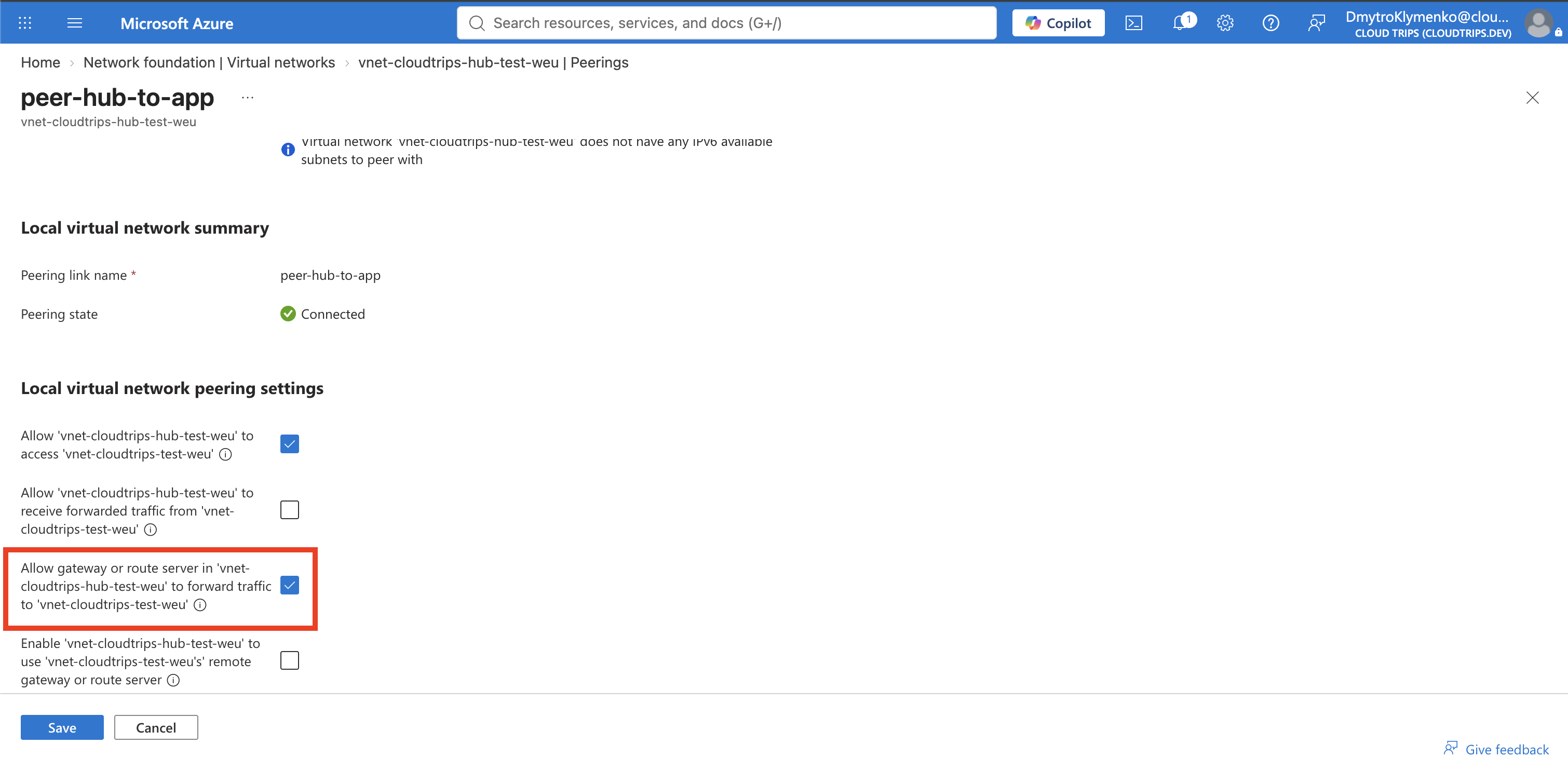

Open vnet-cloudtrips-hub-test-weu > Settings > Peerings. Open peer-hub-to-app. Under the hub’s local peering settings, enable Allow gateway or route server in vnet-cloudtrips-hub-test-weu to forward traffic to vnet-cloudtrips-test-weu, and save the peering. Repeat this for peer-hub-to-services, allowing the hub gateway to forward traffic to vnet-cloudtrips-services-test-weu.

Open vnet-cloudtrips-test-weu > Settings > Peerings. Open peer-app-to-hub, enable Enable vnet-cloudtrips-test-weu to use vnet-cloudtrips-hub-test-weu’s remote gateway or route server, and save the peering. Do not enable Allow gateway or route server in vnet-cloudtrips-test-weu to forward traffic. That option requires a gateway inside the application VNet, but the gateway is intentionally located in the hub.

Open vnet-cloudtrips-services-test-weu > Settings > Peerings. Open peer-services-to-hub, enable Enable vnet-cloudtrips-services-test-weu to use vnet-cloudtrips-hub-test-weu’s remote gateway or route server, and save the peering. Leave the option that would require a gateway inside the services VNet disabled.

CloudTrips spoke-to-hub peering showing use of the remote hub gateway enabled

A VNet can use a remote gateway from only one peering. Neither spoke contains its own virtual network gateway, so both can use the hub gateway.

The Azure VPN endpoint is now ready and shared with both spokes, but no office connection exists yet. A local network gateway must describe the office public VPN-device address and private address ranges, and a connection resource must join both gateway definitions before a tunnel can come online.
